Long-Size Black Monocrystalline Solar Roof Tile – High-Power 105W Panel for Maximum Energy Yield
Introducing our Long-Size Solar Roof Tile, specifically engineered for maximum power density and installation efficiency. This extended-format black monocrystalline PERC tile delivers an impressive 105W per panel and 188W per square meter – making it one of the highest power-density solar tiles available. With dimensions of 1535×433mm, this tile covers more roof area per unit, reducing installation time and labor costs while maximizing energy production. Featuring the same premium semi-tempered glass construction, aluminum alloy frame, and IEC 1000V system voltage rating as our standard tiles, this long-format version is perfect for large-scale residential and commercial projects where space optimization and high energy output are critical priorities. The higher voltage characteristics (11.69V Voc) also allow for more efficient system design with fewer parallel connections.
Key Features & Benefits
-
High Power Output: 105W per tile and 188W per m² – exceptional energy density for maximum roof utilization.
-
Extended Format Design: 1535mm length reduces installation time and hardware requirements.
-
Premium Construction: Double-layer semi-tempered glass with aluminum alloy frame ensures durability.
-
High Voltage Configuration: 11.69V Voc enables more efficient system wiring and reduced balance-of-system costs.
-
Weather Resilience: Operates in -40℃ to +85℃ environments and withstands 25mm hail impacts.
-
Safety Certified: Class A fire rating and Application Class A for commercial and residential use.
-
Simplified Installation: Fewer tiles needed per roof area, with standard IP67 junction boxes and MCA connectors.
Technical Specifications
How It Works
The long-format solar tile utilizes the same high-efficiency monocrystalline PERC cell technology as our standard tiles, but with an optimized cell layout and electrical configuration that takes advantage of the extended dimensions. The larger surface area (0.664m² per tile) allows for more solar cells to be interconnected in an optimal pattern, resulting in higher voltage output (11.69V Voc) while maintaining manageable current levels. This electrical configuration is particularly advantageous for string inverter systems, where higher voltage strings reduce wiring complexity and improve overall system efficiency. The extended format also means fewer individual units need to be handled and installed per square meter of roof coverage, streamlining the installation process significantly.
Application Scenarios
This high-power long-format solar tile is ideal for:
-
Large Residential Roofs: Maximizing energy production on spacious single-family homes.
-
Commercial & Industrial Buildings: Where large roof areas benefit from high-power, easy-to-install tiles.
-
Solar Farm Roof Installations: Utility-scale projects on warehouse and factory rooftops.
-
New Construction Projects: Where architects can design roof systems around the extended tile dimensions.
-
Retrofit Projects: On existing structures with ample, uninterrupted roof space.
-
Agricultural Buildings: Barns, sheds, and storage facilities requiring high energy output.
Why Choose Our Long-Size Solar Tile?
-
Superior Power Density: 188W/m² delivers more energy per square meter than most competing products.
-
Installation Efficiency: Fewer tiles to handle and install means lower labor costs and faster project completion.
-
System Design Advantages: Higher voltage characteristics simplify wiring and reduce balance-of-system components.
-
Proven Durability: Same rigorous construction and testing standards as all our solar tile products.
-
Cost-Effective Solution: Higher power per tile often translates to lower cost per watt installed.
Frequently Asked Questions (FAQ)
Q: How does the long-size tile compare to standard tiles for installation?
A: The 1535mm length covers approximately 64% more area per tile than standard 935mm tiles, meaning fewer tiles to install per square meter – typically reducing installation time by 20-30%.
Q: Can I mix long-size and standard tiles on the same roof?
A: While electrically compatible, we recommend using one format per roof section for optimal aesthetics and installation uniformity.
Q: Does the higher weight per tile require special roof reinforcement?
A: At 17.6kg/m², the weight distribution is similar to standard tiles. Most commercial and residential roofs designed for standard roofing materials can support this load.
Q: What advantages does the 11.69V Voc provide?
A: Higher voltage allows for longer strings of tiles connected in series, reducing the number of parallel connections and associated wiring, which can lower system costs and improve reliability.
Q: Are mounting systems different for long-size tiles?
A: Mounting principles are the same, but rail spacing may need adjustment. Consult our installation guide for specific recommendations.
Important Notes
-
Ensure roofing structure can accommodate the longer tile dimensions, particularly at roof edges and penetrations.
-
Follow specific installation guidelines for long-format tiles regarding expansion gaps and mounting point spacing.
-
Consider wind load calculations for your region, as larger tiles may have different wind uplift characteristics.
-
Plan electrical design around the higher voltage parameters to optimize system performance.
-
Always use certified installers familiar with large-format solar tile installation techniques.

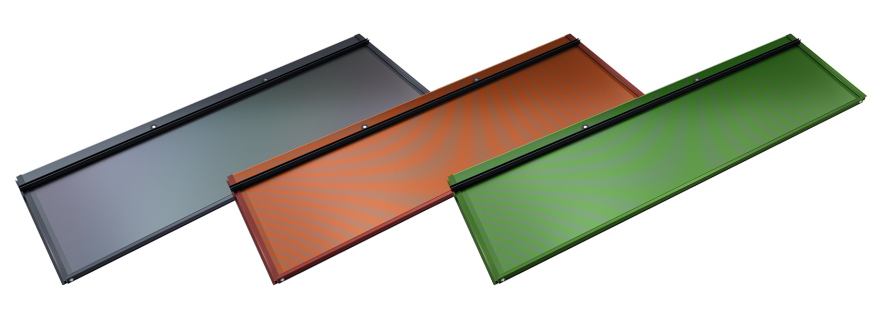

Product Diagram

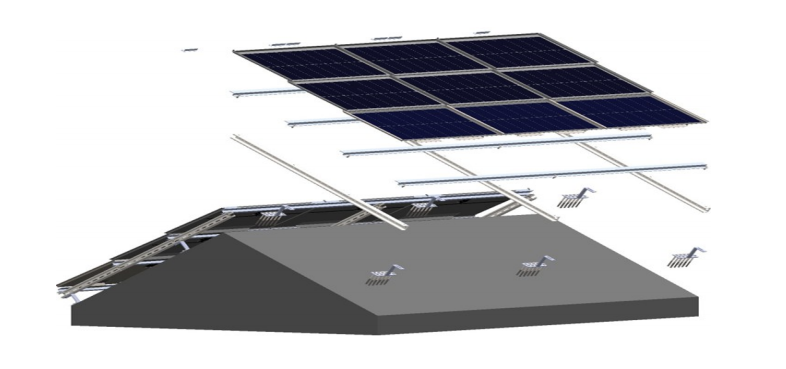

Installation Diagram
